Panelen

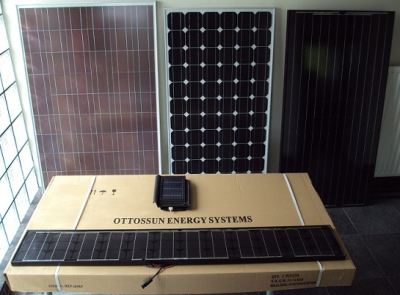

Ottossun Energy Systems levert zowel opbouwpanelen, inbouwpanelen (eigen patent) en solar dakpannen. Ottossun hanteert zeer strenge kwaliteitseisen en levert aldus hoogwaardige panelen. Alle panelen worden vervaardigd met klasse 1 en klasse 2 JA solar en CEEG cellen.

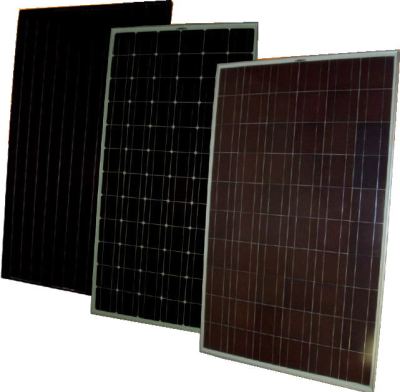

Opbouwpanelen
Technische kenmerken
| Electrical Characteristics | |||
|---|---|---|---|
| Model | PV-180V | PV-185V | PV-230V |
| Monocrystalline | Monocrystalline | Polycrystalline | |
| Cells per module | 72 | 72 | 60 |
| Shape of cell | 125*125 | 125*125 | 156*156 |
| Max. vermogen (W) | 180 | 185 | 230 |
| Open circuit voltage (V) | 44.65V | 45.40V | 36.90V |
| Short circuit current (A) | 5.19A | 5.27V | 8.27A |
| Optimal operating voltage (V) | 36.95V | 37.10V | 29.94V |
| Optimal operating current (A) | 4.95A | 5.01A | 7.68A |
| Power tolerance | +/-3% | +/-3% | +/-3% |
| Temperature coefficient | |||
| Temperature coefficient of Isc | +0.1%/K | +0.1%/K | +0.1%/K |
| Temperature coefficient of Voc | -0.38%/K | -0.38%/K | -0.38%/K |
| Temperature coefficient of power Pmax | -0.47%/K | -0.47%/K | -0.47%/K |
| Dimensions and weight | |||
| Length (mm) | 1580 | 1580 | 1634 |
| Width (mm) | 808 | 808 | 992 |
| Thickness (mm) | 45 | 45 | 50 |
| Weight (kg) | 15 | 15 | 20.3 |
| Operating temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| System maximum open circuit voltage | 1000V | 1000V | 1000V |
| Wp/m² | 141 | 145 | 142 |
Inbouwpanelen
Technische kenmerken
| Electrical Characteristics | |||||||
|---|---|---|---|---|---|---|---|

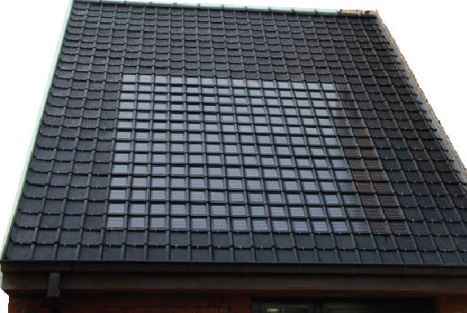

| Model | PV-42V | PV-56V | PV-70V | PV-180V | PV-230V | Reno Sol Pan | Neo Sol Pan |
| Monocrystalline | Monocrystalline | Monocrystalline | Monocrystalline | Polycrystalline | Monocrystalline | Monocrystalline | |
| Max. power (W) | 42 | 56 | 70 | 185 | 230 | 3.5 | 12.1 |
| Wp/m² | 111 | 115 | 117 | 141 | 142 | 70 | 120 |
| Operating temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| System maximum open circuit voltage | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V |
| Dimensions | |||||||
| Length (mm) | 1580 | 1580 | 1580 | 1580 | 1634 | 246 | 355 / 469.1 |
| Width (mm) with Rail S | 240-270 | 308-338 | 376-406 | 845-875 | 1020-1050 | 190 | 304 / 357.7 |
| Width (mm) with Rail L | 270-300 | 338-368 | 406-436 | 875-905 | 1050-1080 | = Stormpan | zichtbaar / totaal |
| Thickness (mm) | 25 | 25 | 25 | 45 | 50 | 61.8 | |
| Weight | |||||||
| Weight (kg/m²) | 19,2 | 17,7 | 17,2 | 14,3 | 12.5 | 18.9 | 16 |
Garantie
- 5 jaar productgarantie
- 25 jaar opbrengstgarantie 80%, 10 jaar 90%
